Roll To Roll Thermal Lamination Machine

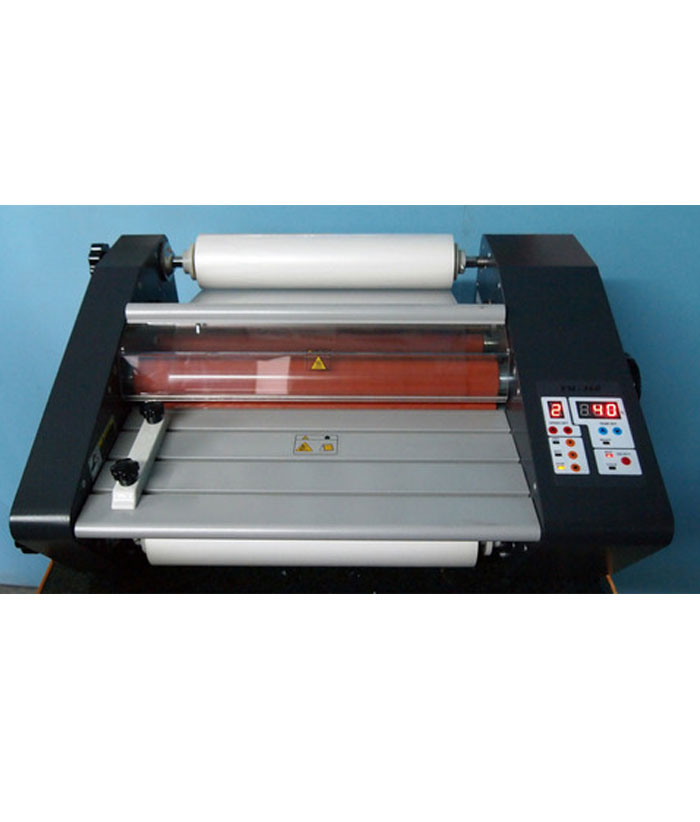

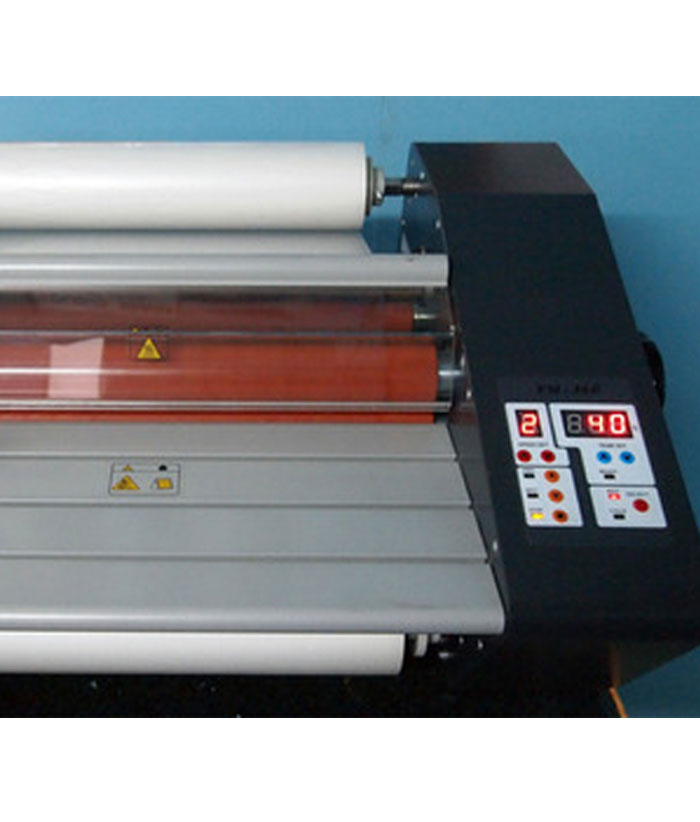

Both Side Lamination Machine FM360

These machines are precisely manufactured by making utmost use of supreme quality required basic material and components, source from the established vendors of the industry. Based on latest technology, these products are featured with longer service life and efficiency.

Credential such as ID cards, visiting cards, photographs, driving licences, certificates and some important blue prints should be kept in laminating film against moisture or water.

Equipped with infrared heating systems, the machine has characteristics of rapid and even heating and can start working properly in 3 minutes after being turned on.

The IC temparature control system provides you with properly in 3 minutes after being turned on

Cool mounting can easily be achieved simply by turning off the heating system and stopping heating.

Technical Details

 Laminating Width  330 mm
 Laminating Thickness  5 mm
 Laminating Speed  600-1600mm/min
 Hot Lam. Temperature  60°-160°C
 Cold Lam. Temperature  20°-160°C
 Roller  4 pcs
 Heating Roller Dia  45 mm
 Pull Roller Dia  30 mm
 Power Supply  110/220V 50/60Hz
 Power Consumption  600W
 Dimension  640x440x285mm
