Ammonia Printing Machine

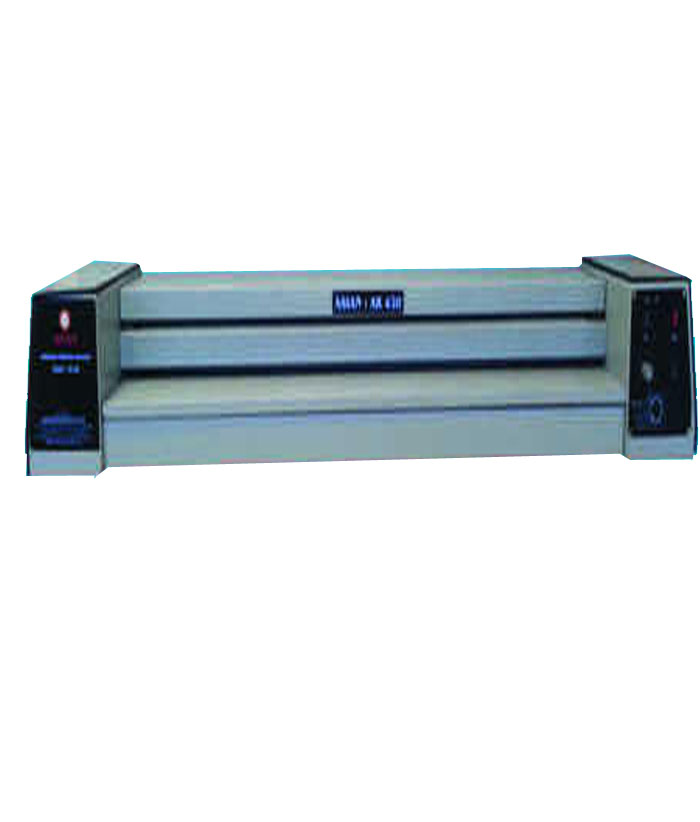

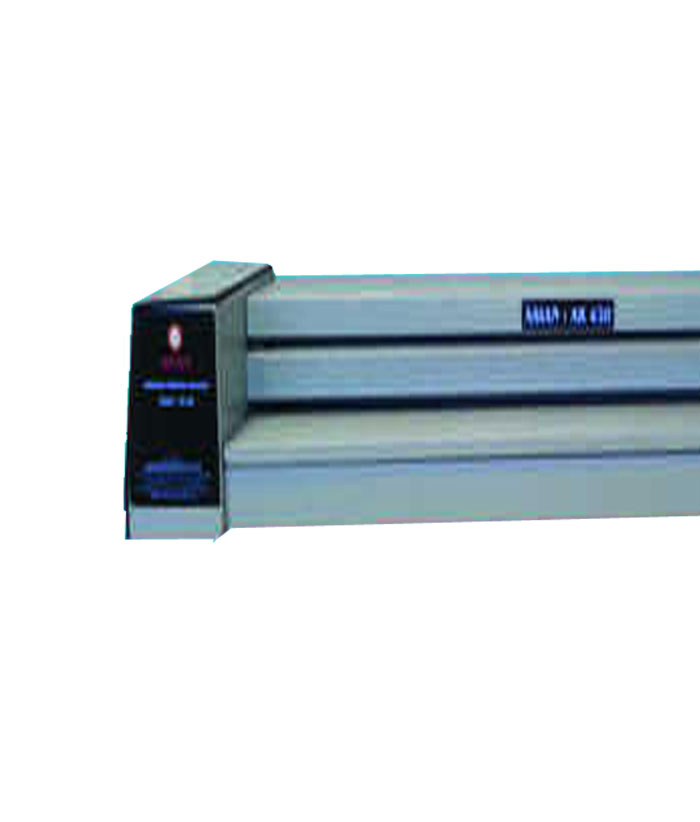

AR 420 S Synchronised Machine

AR 420 S Three Tube Exposing Machine with Horizonatal and Vertical Static Developing Chamber. The range of ammonia printing machine are unique in their compact, space saving designs with streamlined rigid structure.

AR 420 S Three Tube Exposing Machine with Horizonatal and Vertical Static Developing Chamber. The range of ammonia printing machine are unique in their compact, space saving designs with streamlined rigid structure.

The Exposure is through a rotating glass cylinder driving by endless conveyor belts. The exposure is through a rotating glass cylinder driven by endless conveyor belts. The exposure speed setting incorporates an electronic circuit controlled by a fine potentiometer. Instant reversal of any wrong fed paper is possible. No change gears. No Frinction drives

Suitable provisions are given to keep ammonia roll below the feed plate form in a closed roll chamber & to cut the paper on feed plate form. All the machine bodies are made completely from CR sheet of 16/18/20G, pained with Epoxy powder coatings. It is professionally finished product to suit with any drawing office.

Features:
Robust construction
Fully synchronized speed
Easy to use

Technical Details

Desc Tech Tech
Light Source 1 x 140 W Super Actinic Tube 3 x 140 W Super Actinic Tube 6 x 140 W Super Actinic Tube
Maximum Feed Width 120 cm and minute length of paper 120 cm and infinite length of paper 120 cm and infinite length of paper
Maximum Printing Speed 2.5m/min 4m/min 9m/min
Power Consumption 300 Watts approximately 600 Watts approximately 2.1 kW approximately
Main Supply 230 V, AC 50 c/s Single Phase 230 V, AC 50 c/s Single Phase 230 V, AC 50 c/s Single Phase
Coating Device Not required Separate Blower Fan
Centrifugal Type		 Separate Blower Fan
Centrifugal Type
Development A Lead Proof Seperate Vertical / Static
developing Chamber 		A Lead Proof Seperate Vertical / Static
developing Chamber		 A Lead Proof Seperate Vertical / Static
developing Chamber
Overall Dimension W-1600 mm
D-335 mm
H-260 mm		 W-1600 mm
D-335 mm
H-260 mm		 W-1645 mm
D-710 mm
H-385 mm
Synchronised developer unit
Rear Delivery in a
collection Tray		 Synchronised developer unit
Rear Delivery in a
collection Tray		 Pressure Paper Feed system
super seated construction inbuild
automatic electronic controls
